Model Description:

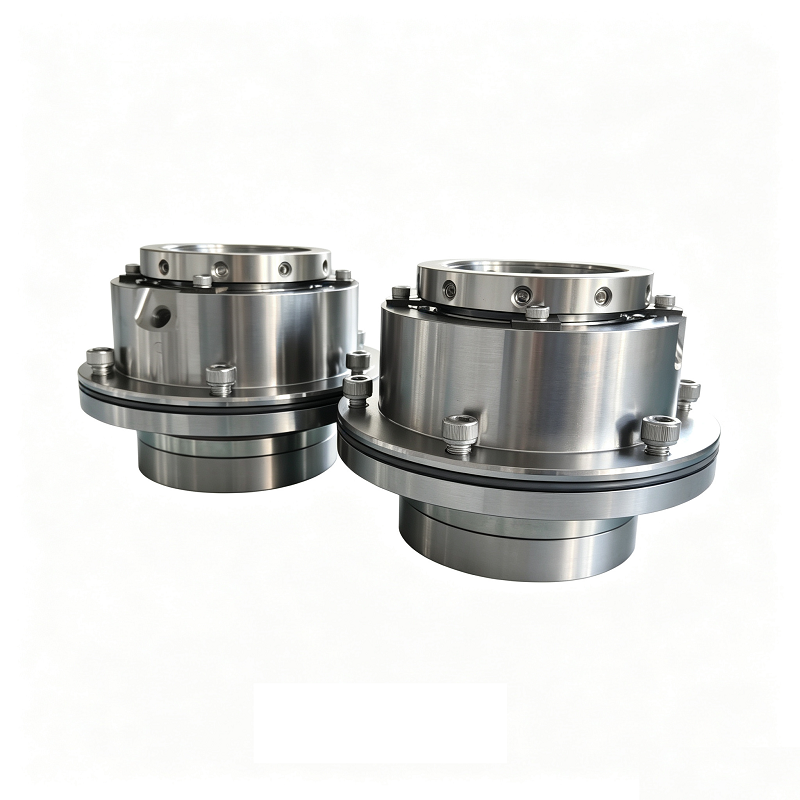

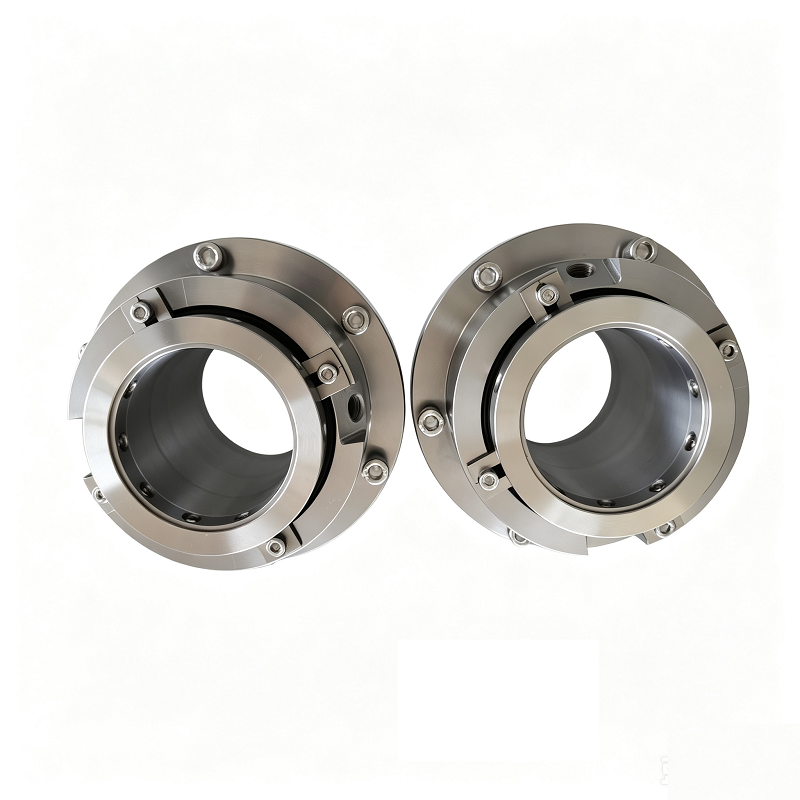

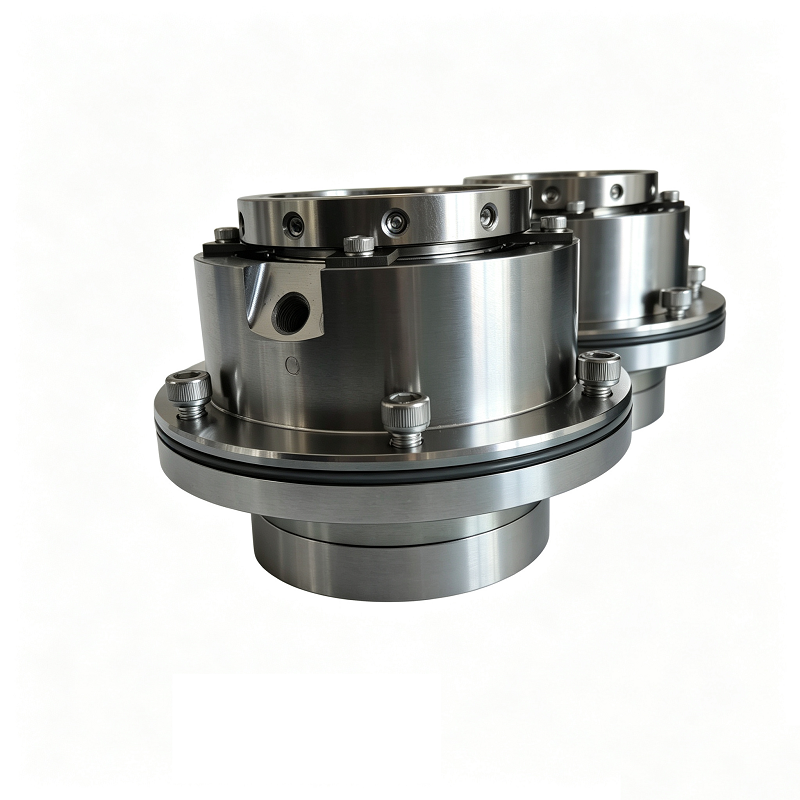

Heavy-duty slurry mechanical seal
Cartridge seal
Comply with API standards
Corrosion-resistant
Applicable industries: power industry, mining, ore processing,etc.

Typical applications:
Flue gas desulfurization, tailings treatment, coal slurry transportation, bauxite and iron ore slurry, etc.

Performance Parameters:
Size range: 28-220mm
Temperature: -30~80℃; can reach 160℃ when using quenching water
Pressure: 0-1.6 MPa (2.5MPa)
Speed: Maximum 20m/s or not more than 5000rpm
Solid content: impurities weight not more than 40%

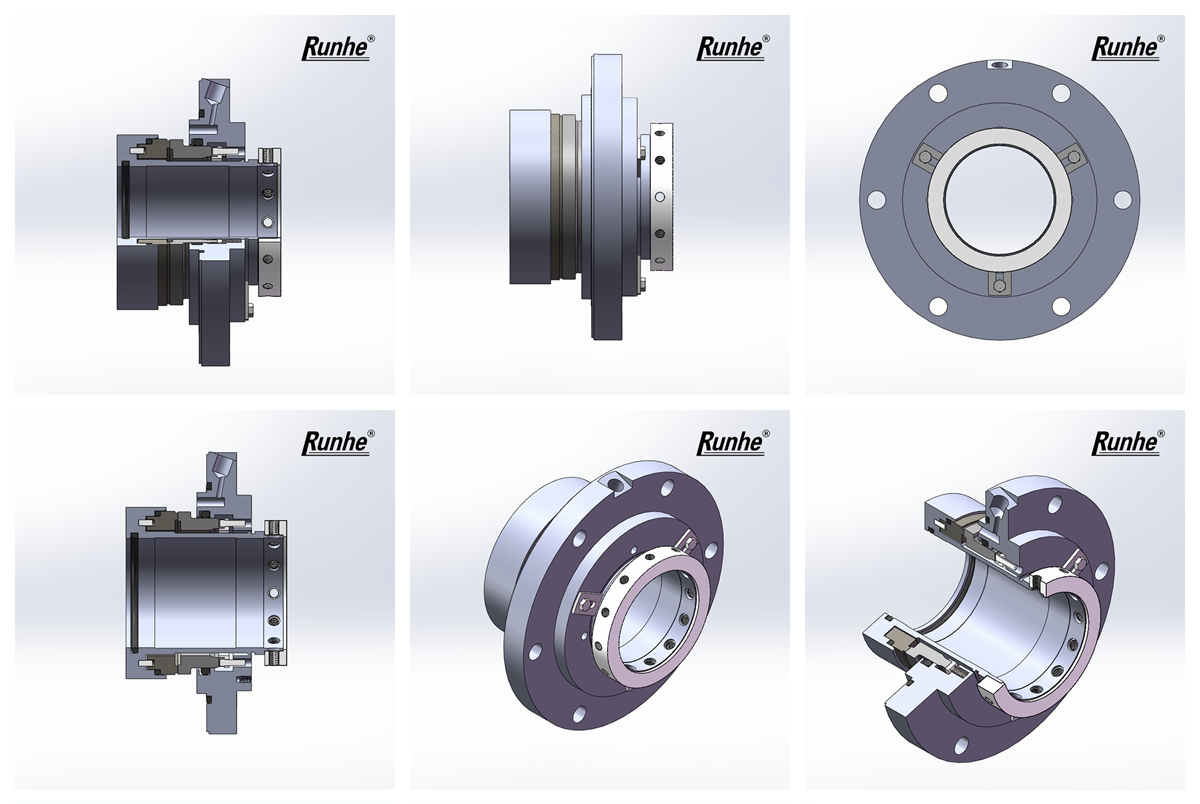

Design Features
●Static seal face structure
Effectively reduce the abrasion of the slurry medium on the seal surface
●High-quality silicon carbide material
Good friction performance and high hardness, greatly extending the service life of the seal face
●Outside mounted spring
Not affected by the slurry medium
●Large dynamic O-ring
Prevents blockage by solid particles or fibers
●Intermittent or continuous rapid cooling
Avoids the accumulation of solid particles on the atmospheric side
●Excellent floating performance
Eliminate damage to the seal caused by pump body vibration
●Flexible transmission pin
Avoid damage to the sealing ring due to frequent pump startup
●Cartridge seal design
●Easy and quick installation
