Application

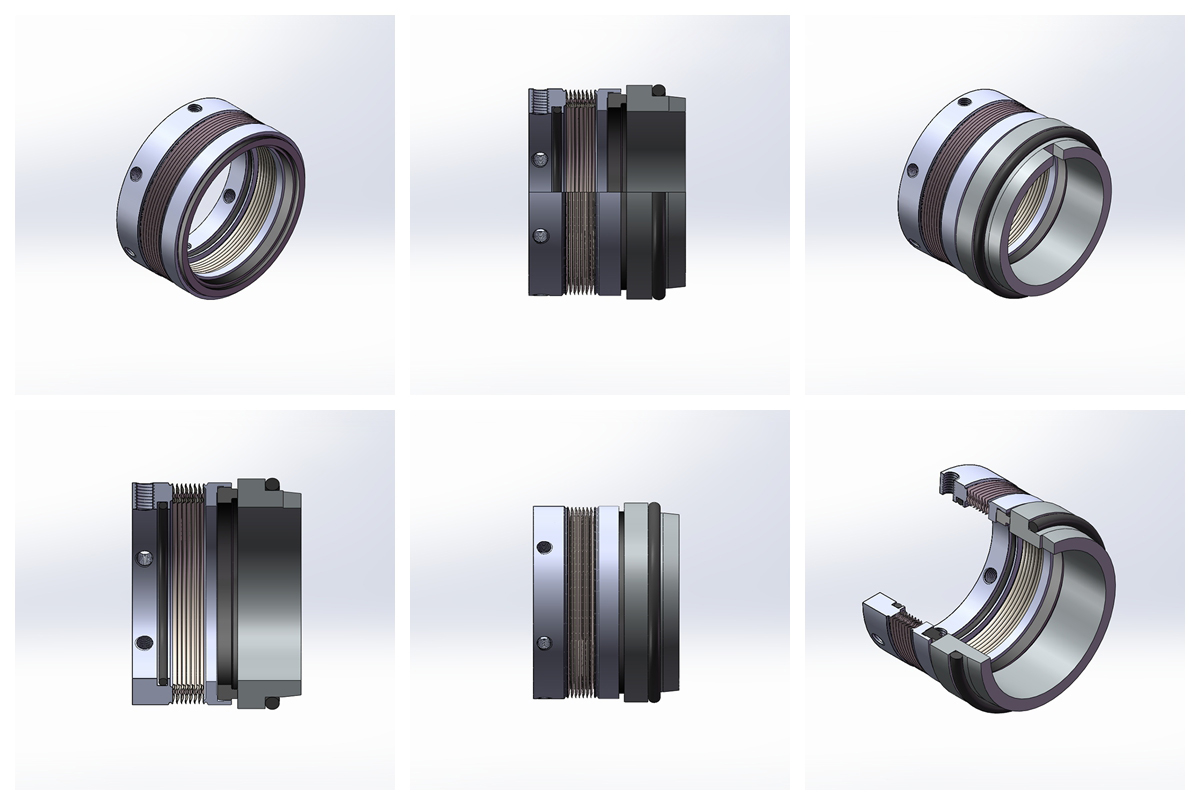

Rotary bellows. The connection dimensions of this series of seals comply with DIN24960 and GB6556 standards, and are suitable for centrifugal pumps and other rotating shaft equipment of DIN24960 and GB6556. The 45° wave design reduces the stress peak and decomposes the inner hole welding stress to prevent early failure. It also makes the stress distribution more reasonable and the elasticity better, thus ensuring good followability of the seal.

Design Features
● Standardized design: Comply with DIN24960 and GB6556
● Bellows seal: Good dynamic performance and strong environmental adaptability
● O-ring: Only used as a static seal, simple and reliable
● Set screw positioning: Simple installation and easy adjustment
● Corrosion-resistant design: With special corrosion-resistant seal

Operating Parameters
Temperature: minimum -40℃, maximum 180℃
Pressure: maximum -0.1~4.2MPa
Speed: ≤25m/s or ≤5000rpm.
Size range: 25~100mm, extra large size can be customized.
