Application

1. Applied to API Plan (non-pressure) or 53 (pressure) system, the system consists of liquid accumulator, mechanical seal, other measurement and control components and pipelines, etc.

2. The main function is to use circulation, cooling and other working methods to control the working temperature of mechanical seal, improve the lubrication conditions of mechanical seal, control the working pressure of mechanical seal, prevent contamination of seal leakage alarm, etc., to establish an ideal working environment for mechanical seal, thereby improving the reliability and safety of mechanical seal and extending the service life.

PLAN52 Plan

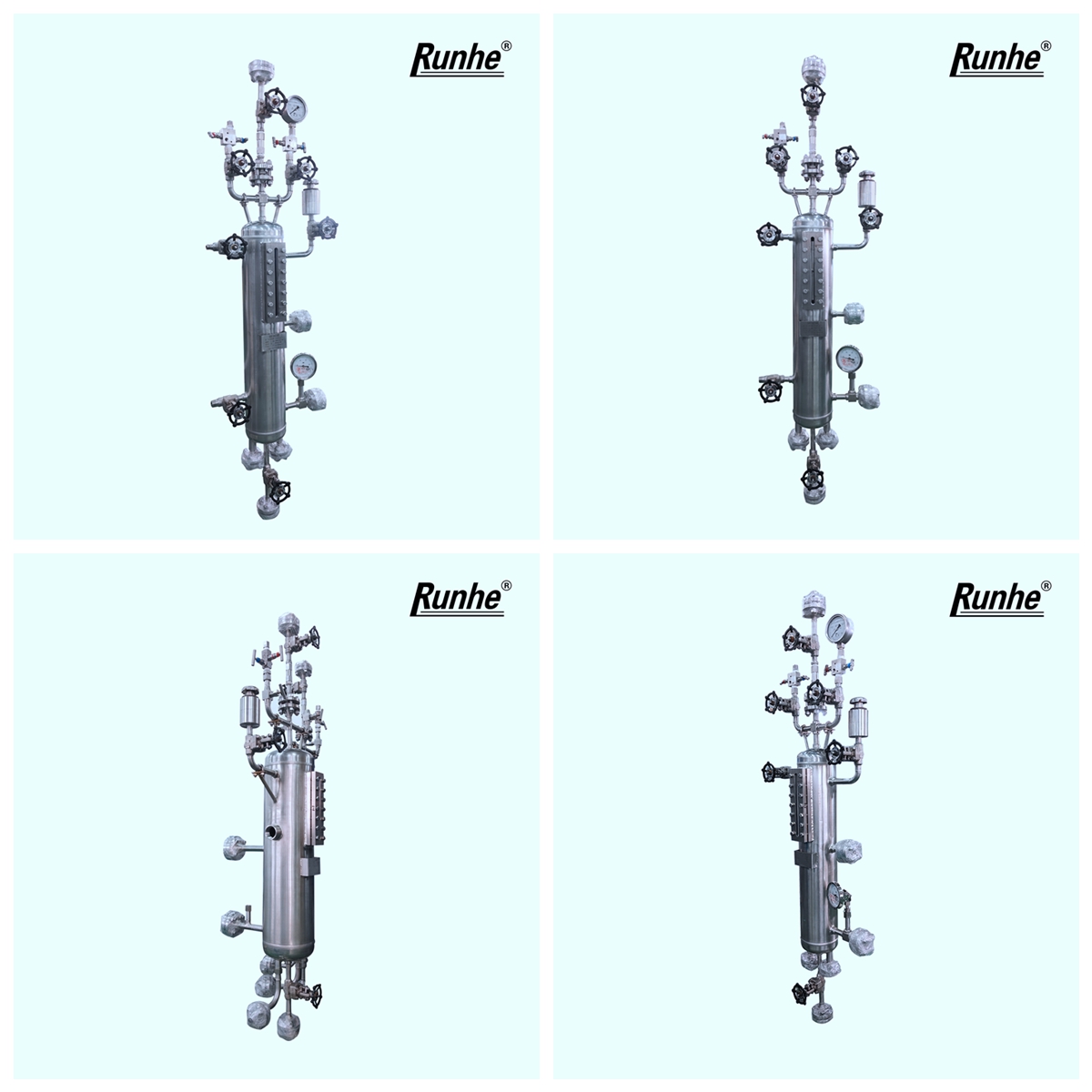

Plan52 Plan is mainly used for tandem mechanical seal, the non-pressurized buffer fluid passes through the liquid accumulator, and the pumping ring in the cartridge seal provides circulation power. It is mainly used in easily vaporized, flashing hydrocarbons and dangerous, toxic and harmful media. The buffer fluid pressure in the liquid accumulator is normal pressure. If the seal on the medium side leaks directly into the seal on the atmosphere side, the pressure in the liquid accumulator increases and is then discharged from the exhaust line. The seal leakage can be judged by the liquid level shown by the liquid indicator on the liquid accumulator. The choice of buffer fluid should be consistent with the properties of the process medium. The pressure switch is set to high pressure alarm, and the alarm value is usually: 0.1Mpa.
