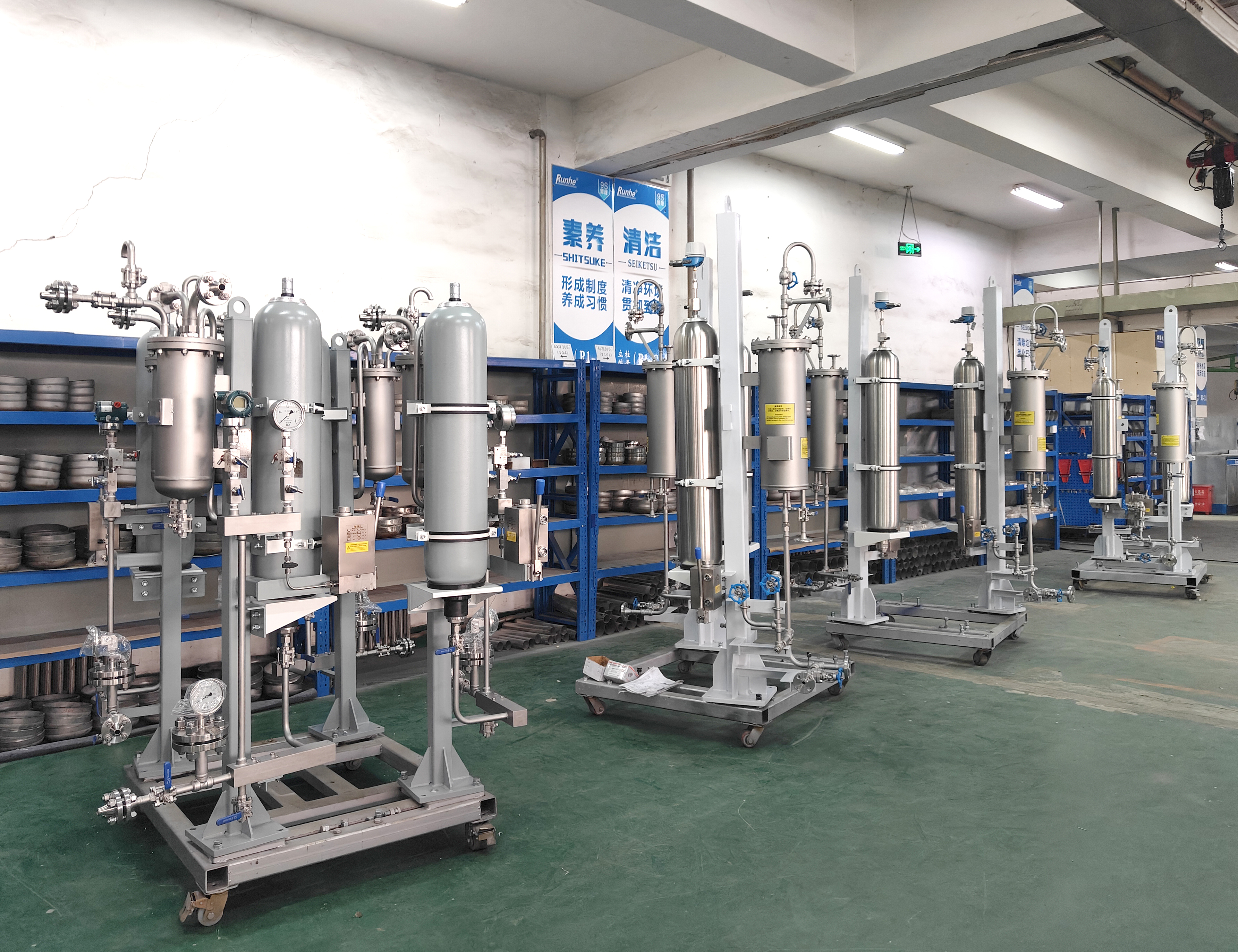

Main Components of PLAN53B Seal Support System

1. Mechanical seal (typically two sets: inboard primary seal + outboard safety seal)
2. Pressurized barrier fluid circulation system (usually water or glycol solution)
3. Accumulator (piston-type or bladder-type) – to maintain barrier fluid pressure and compensate for volume changes
4. Pressure gauge – to monitor barrier fluid pressure
5. Level switch / level indicator – to monitor fluid level in the accumulator
6. Fill/drain valves – for adding or draining barrier fluid
7. Cooling coil (optional) – to reduce barrier fluid temperature
8. Connecting piping – to connect seal chamber, accumulator, and related instruments

The exact configuration of Plan 53B seal auxiliary system depends primarily on specific operating conditions, such as the medium, temperature, pressure, etc.
